Teatro Real, Madrid: a ceiling that becomes sky

CinemaNext transformed the domed ceiling above the stalls of one of Europe's great opera houses into a 300 m² immersive projection canvas, without altering a single protected surface.

Few venues carry as much weight as Madrid's Teatro Real. Standing on the Plaza de Oriente, directly opposite the Royal Palace, it has been one of the most prestigious opera houses in Europe since its inauguration on 19 November 1850, and today ranks among Spain's three foremost cultural institutions. Working inside a building of this stature means the technology is never the point. The experience is.

The challenge

An 1850 opera house does not lend itself to modern AV. Declared a National Monument in 1977, the Teatro Real reopened as a fully working opera house in 1997 after seven years of extensive restoration, and every element of its historic auditorium is protected. The brief was therefore not simply to install projection above the audience, but to do so invisibly: no visible hardware, no compromise to the heritage fabric, and no distraction from the performance below. The system had to disappear into the architecture and reveal itself only when the house lights fell.

This is a theatre that already sets a high bar for engineering. Its stage, one of the most advanced in Europe, is served by eighteen moving platforms, so any addition had to meet the same standard of precision and discretion.

The solution

CinemaNext turned the domed ceiling over the stalls into a single 300 m² projection surface, mapped and blended across four Epson laser projectors driven by a Watchout media server. Rather than adapt off-the-shelf rigging, the team engineered bespoke mounts and integrated fibre-optic cabling throughout, concealing the entire signal path within the existing structure. The projectors are positioned and calibrated so that the seam between architecture and image effectively vanishes.

Delivered in August 2024, the installation was designed around reversibility and concealment first, image quality second, and yet it compromises on neither.

The result

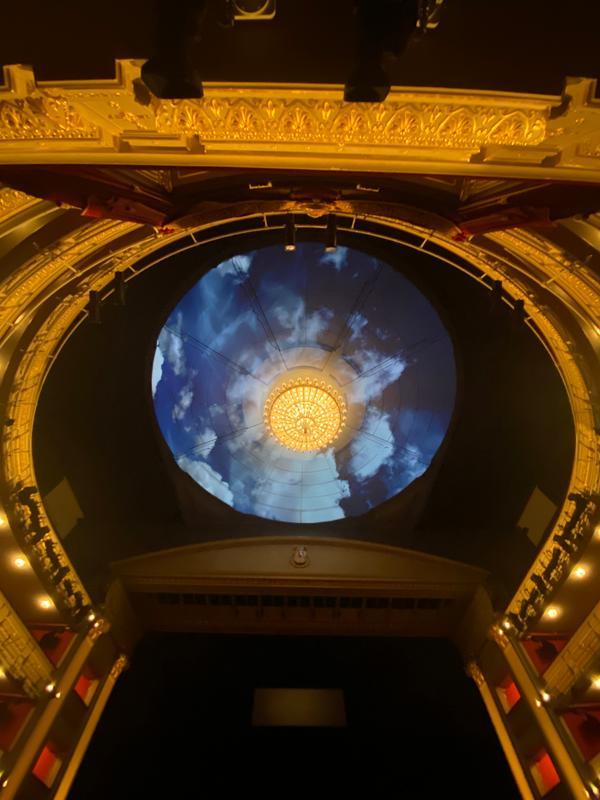

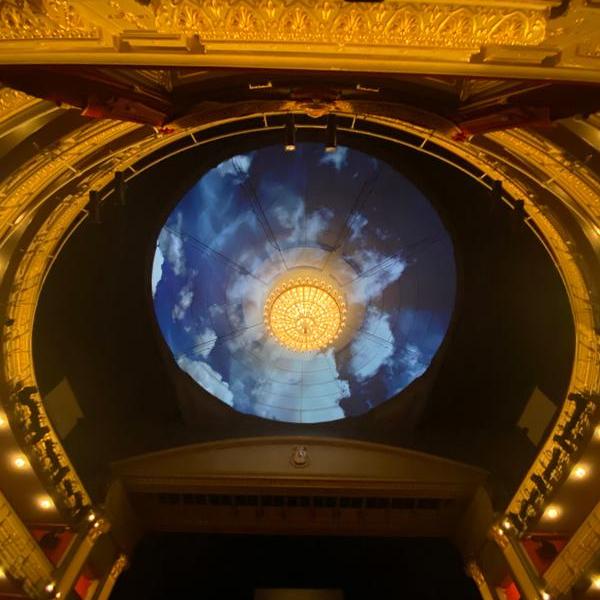

The effect is felt before it is understood. As the auditorium darkens, the ceiling above the stalls gives way to a slow-moving Madrid sky, deep blue and drifting, directly overhead. In an auditorium seating around 1,750, the collective instinct is not to reach for a phone but to look up.

That is the measure of the project. Audiences do not think about projectors, servers or fibre runs. They experience an opera house that, for a moment, loses its ceiling and finds a sky, and they remember it. In a market where venues increasingly compete on the memory they create, that is exactly the outcome the Teatro Real set out to achieve.

Project at a glance

• Venue: Teatro Real, Madrid (opera house, inaugurated 1850)
• Application: immersive ceiling projection over the stalls
• Projection surface: 300 m² mapped across the historic dome
• Projectors: 4 x Epson laser
• Media server: Watchout
• Infrastructure: bespoke mounts and integral fibre-optic cabling, fully concealed
• Delivered: August 2024
